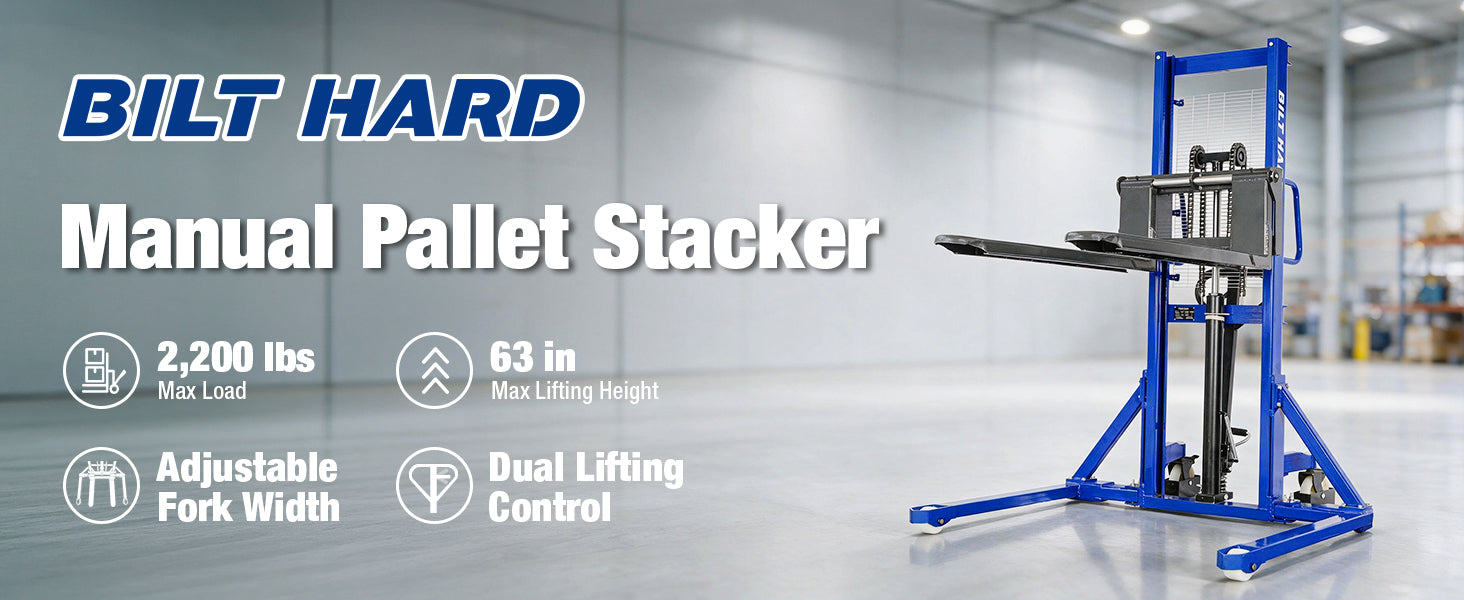

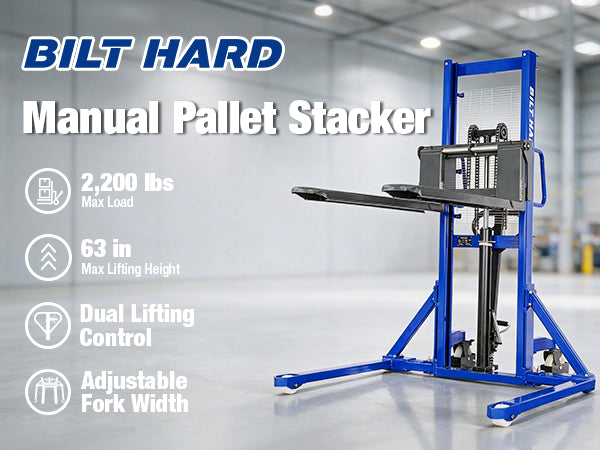

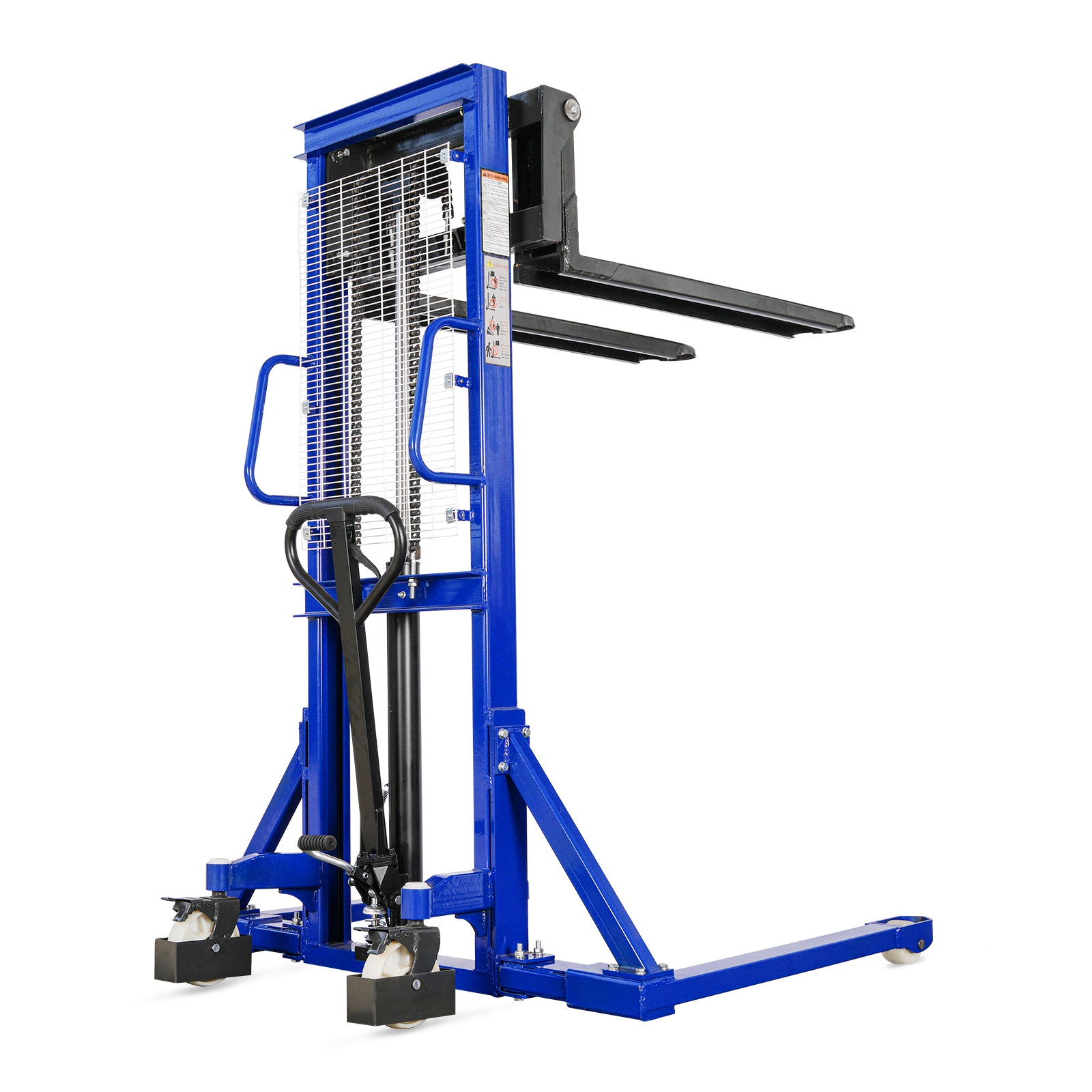

BILT HARD 2,200-Lb Manual Pallet Stacker, 63-Inch Lift Height

$1,799.99 $2,249.99 Save $450.00

FREE FREIGHT SHIPPING: Free within the contiguous U.S. Residential delivery and liftgate fees apply.

ESTIMATED DELIVERY: 10–15 BUSINESS DAYS.

MHD-1801
Style:

Pickup currently unavailable at NJ 1305

4 in stock
Shipping Information

Due to this product's size and weight, it ships via palletized freight. A commercial address is recommended for delivery. If unavailable, terminal pickup may be arranged. Lift gate service is available for eligible addresses and can be selected during checkout. Orders ship within 3 business days, with delivery typically taking an additional 1–7 business days depending on location. Learn More
Warranty & Support

Warranty & SupportBuilt to perform and made to last. Your Bilt Hard product is backed by our warranty coverage for reliable support after purchase.

  • 12-month warranty for most consumer products
  • Dedicated customer support
  • Repair or replacement support for eligible issues

Warranty coverage varies by product and usage type. See ourWarranty Policy for full details.
Return & Refund

Your satisfaction matters to us. If your purchase does not meet your expectations, Bilt Hard provides a straightforward return process for eligible products.

  • 30-day return period after delivery
  • Support for defective or damaged products
  • Refunds processed after product inspection

Return eligibility and refund terms vary by product condition. See our Return Policy for full details.
BILT HARD 2,200-Lb Manual Pallet Stacker, 63-Inch Lift Height
$1,799.99 $2,249.99

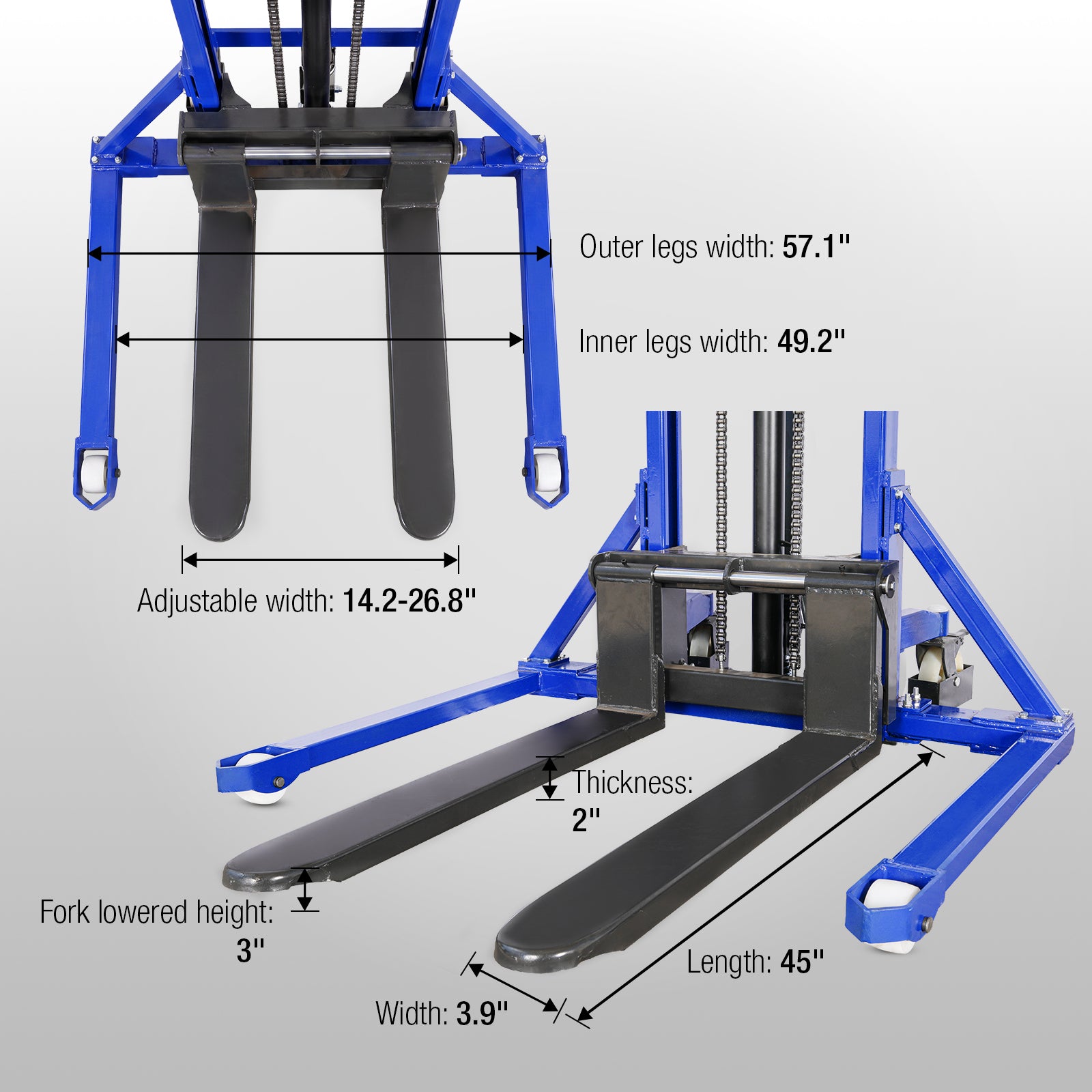

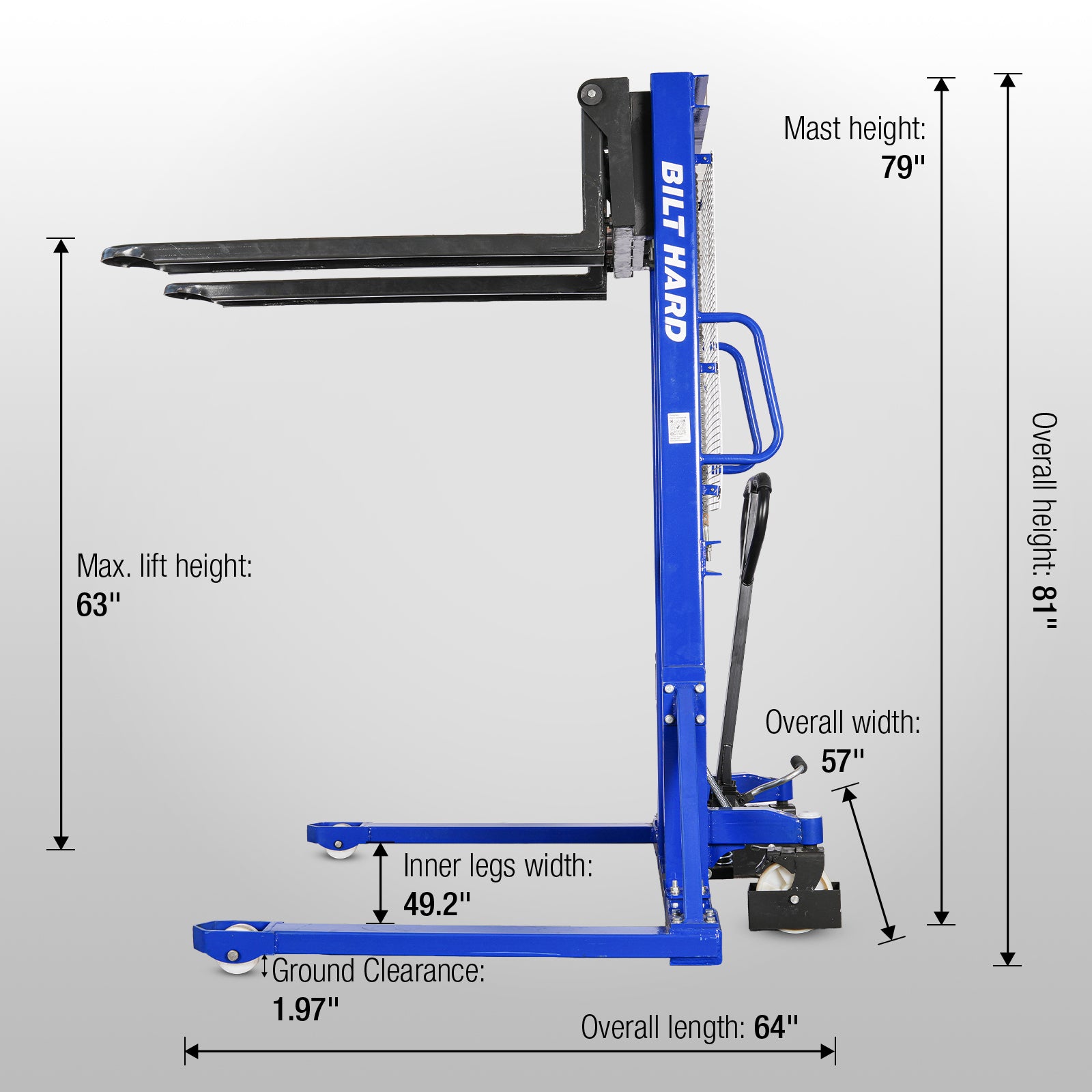

Load Capacity 2,200 lb Load Center 20 in.
Fork Height 3–63 in. Fork Length 45 in.
Fork Width 27 in. Lift System Manual Hydraulic
Overall Height 81 in. Overall Width 57 in.
Turning Radius 55 in. Front Wheels 3 × 3 in.
Rear Wheels 7 × 2 in. Recommended Surface Flat, level ground

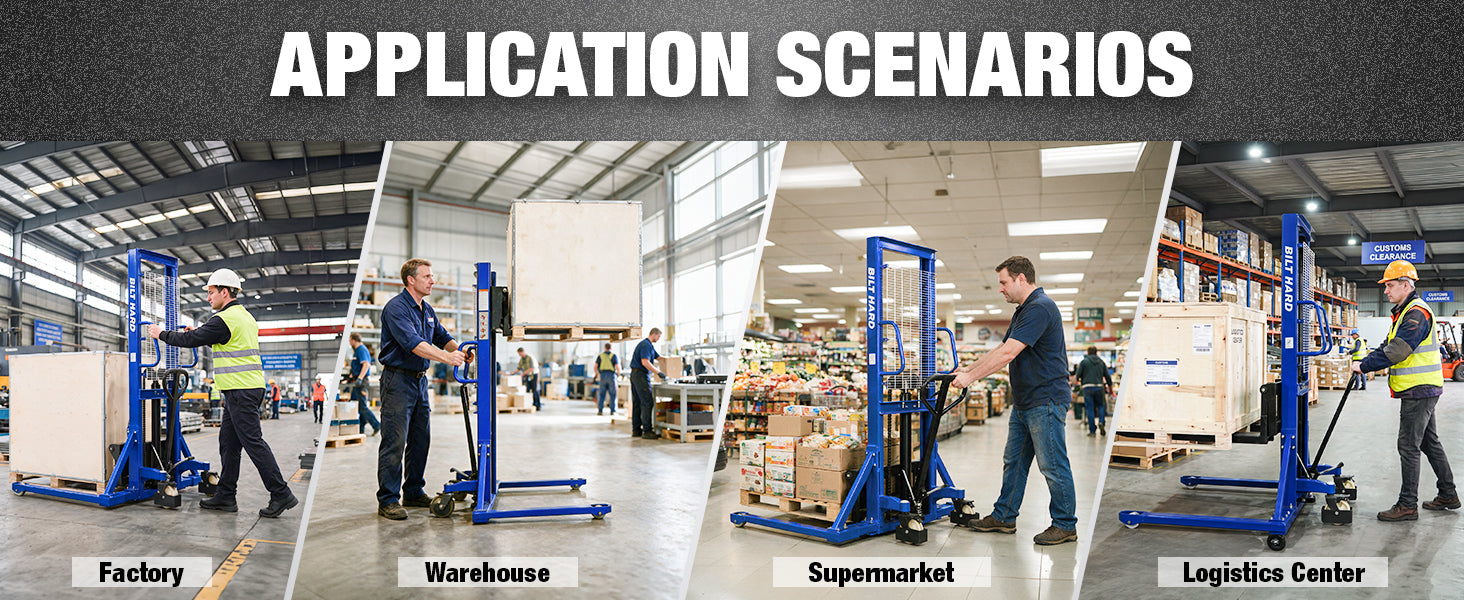

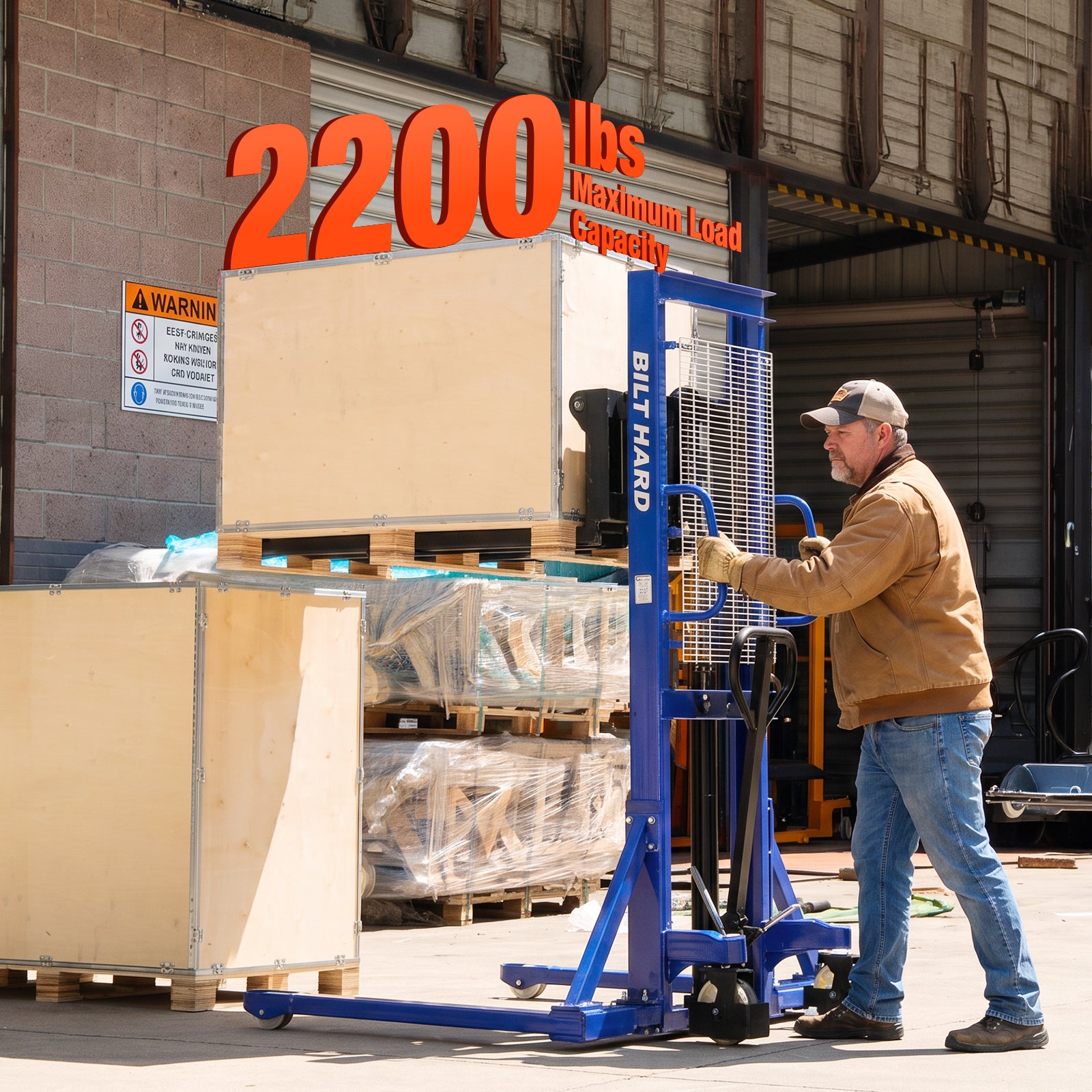

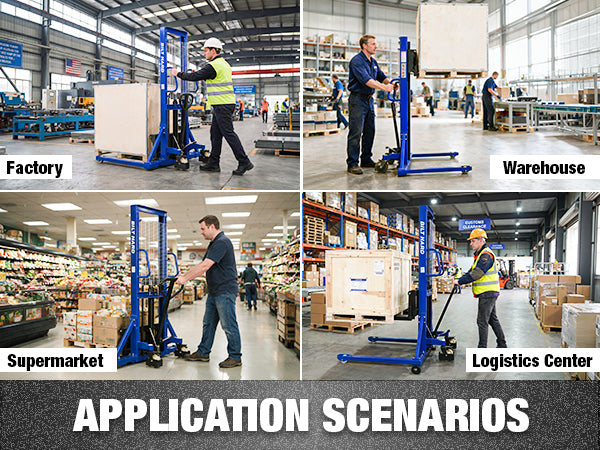

【2,200-LB LOAD CAPACITY】 Handles balanced loads up to 2,200 lb at a 20-inch load center, making it suitable for routine material handling in warehouses, workshops, and stock areas.

【3-TO-63-INCH LIFT RANGE】 Raises loads from a minimum fork height of 3 inches to a maximum of 63 inches for ground-level pickup and elevated positioning.

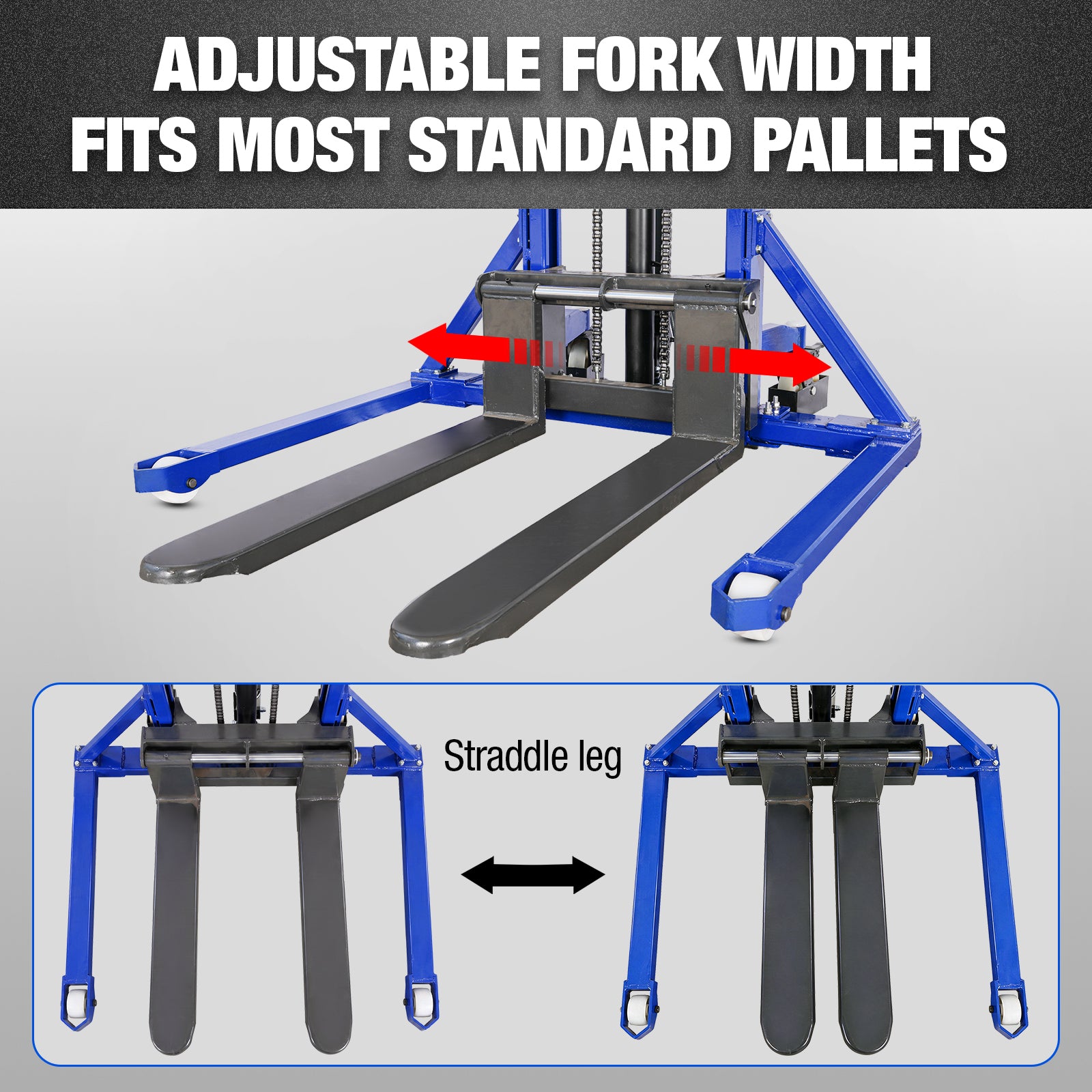

【45-INCH LOAD SUPPORT】 The 45-inch-long forks provide practical support for compatible pallets and balanced materials while the 27-inch fork width helps keep the load centered.

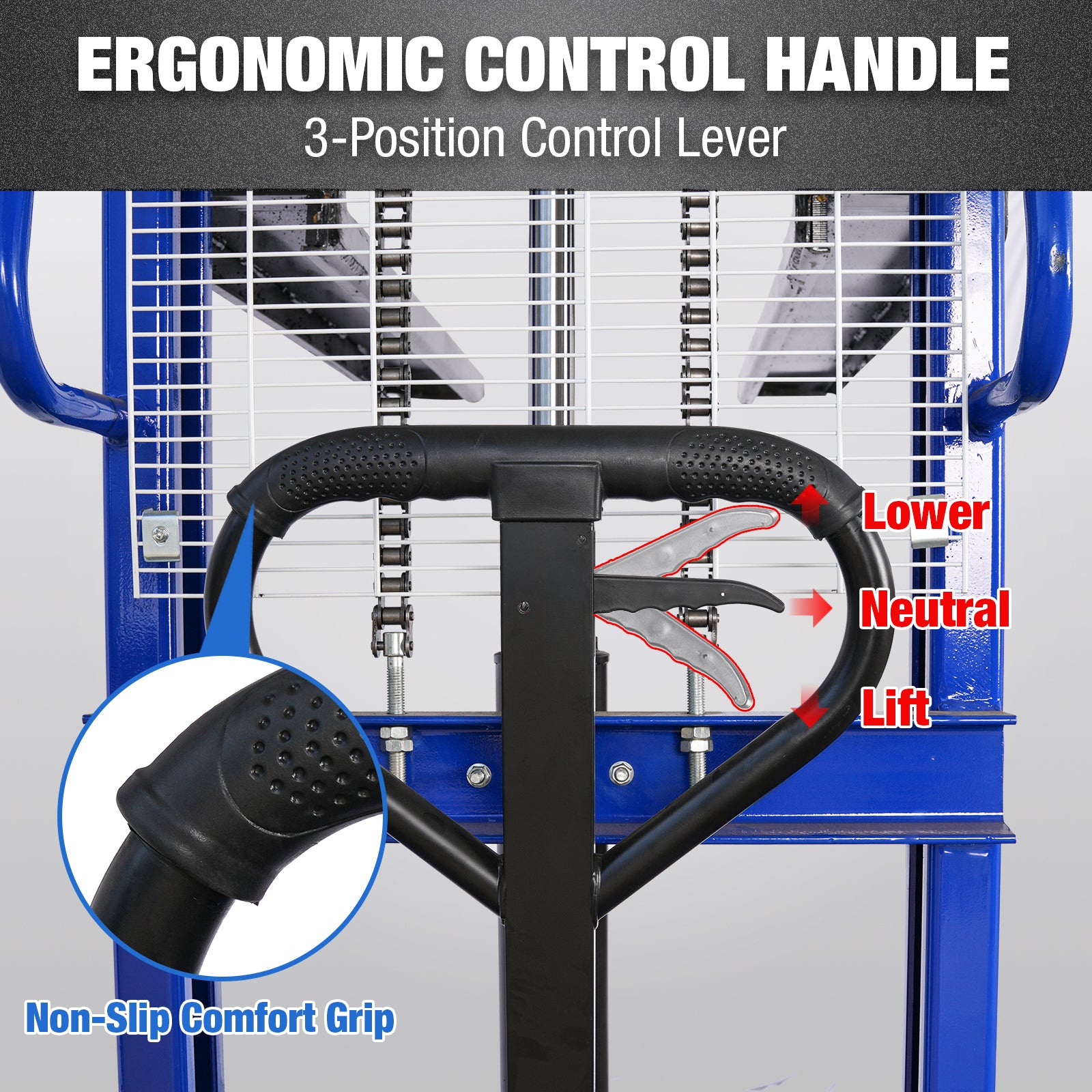

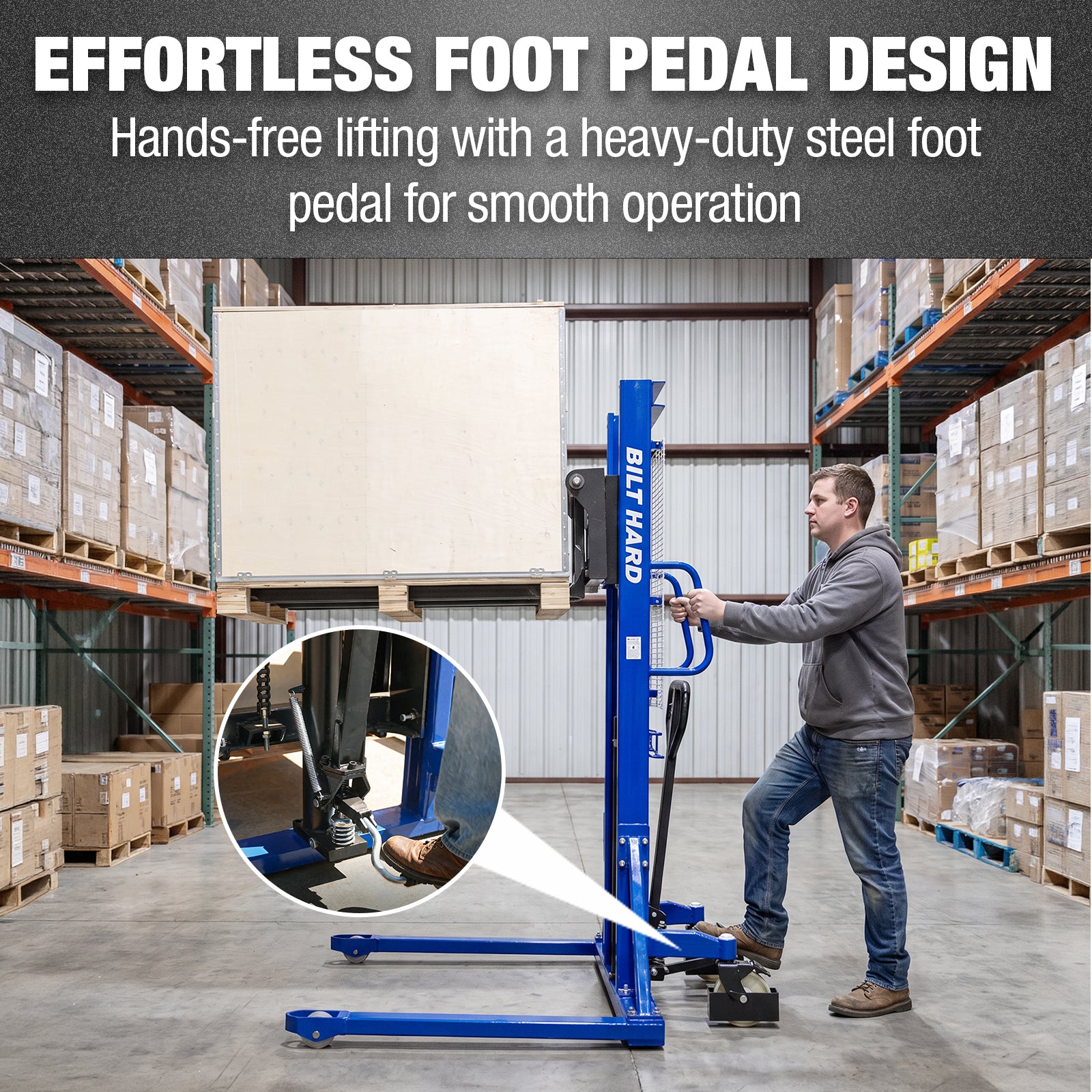

【MANUAL HYDRAULIC CONTROL】 Lift, neutral, and lower handle positions provide straightforward load control without relying on electrical power or battery charging.

【STEEL STACKER CONSTRUCTION】 A steel frame supports regular material-handling work, while 3-inch front wheels and 7-inch rear wheels help operators maneuver the stacker on level surfaces.

Assembly Notice: Due to the size and weight of the components, two adults are required for safe assembly. Do not attempt to assemble the pallet stacker alone.

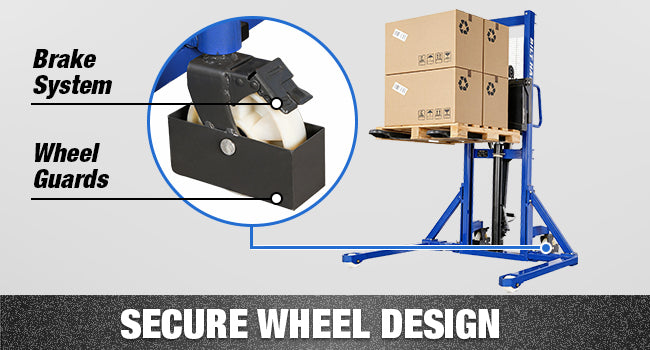

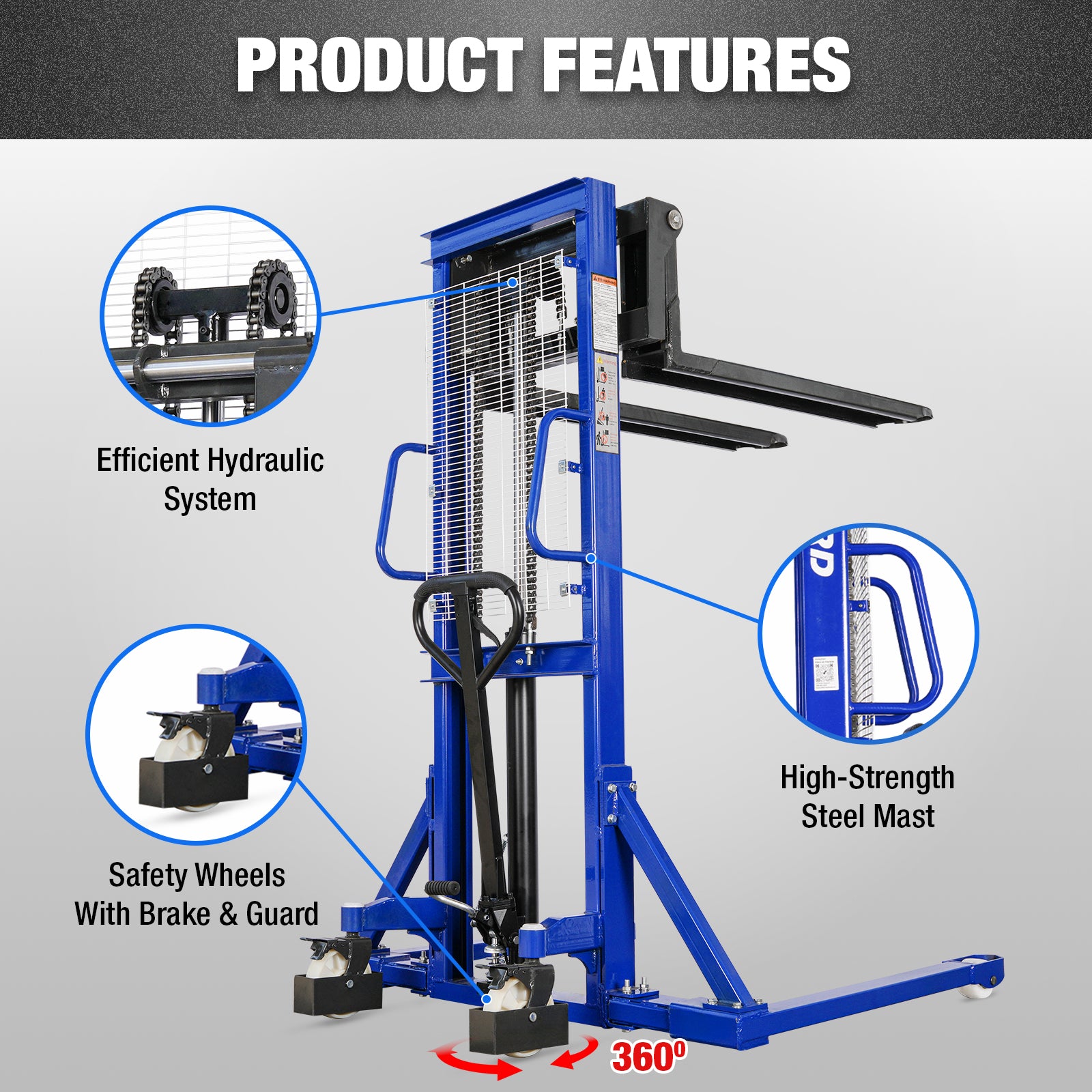

Brake and Wheel Guard Design

The wheel assembly combines a brake for controlled positioning with protective guards around the rolling components.

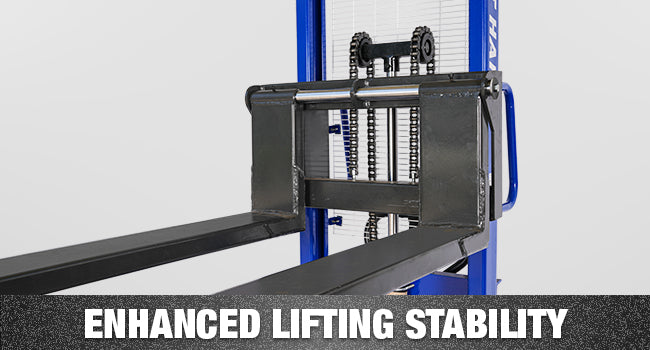

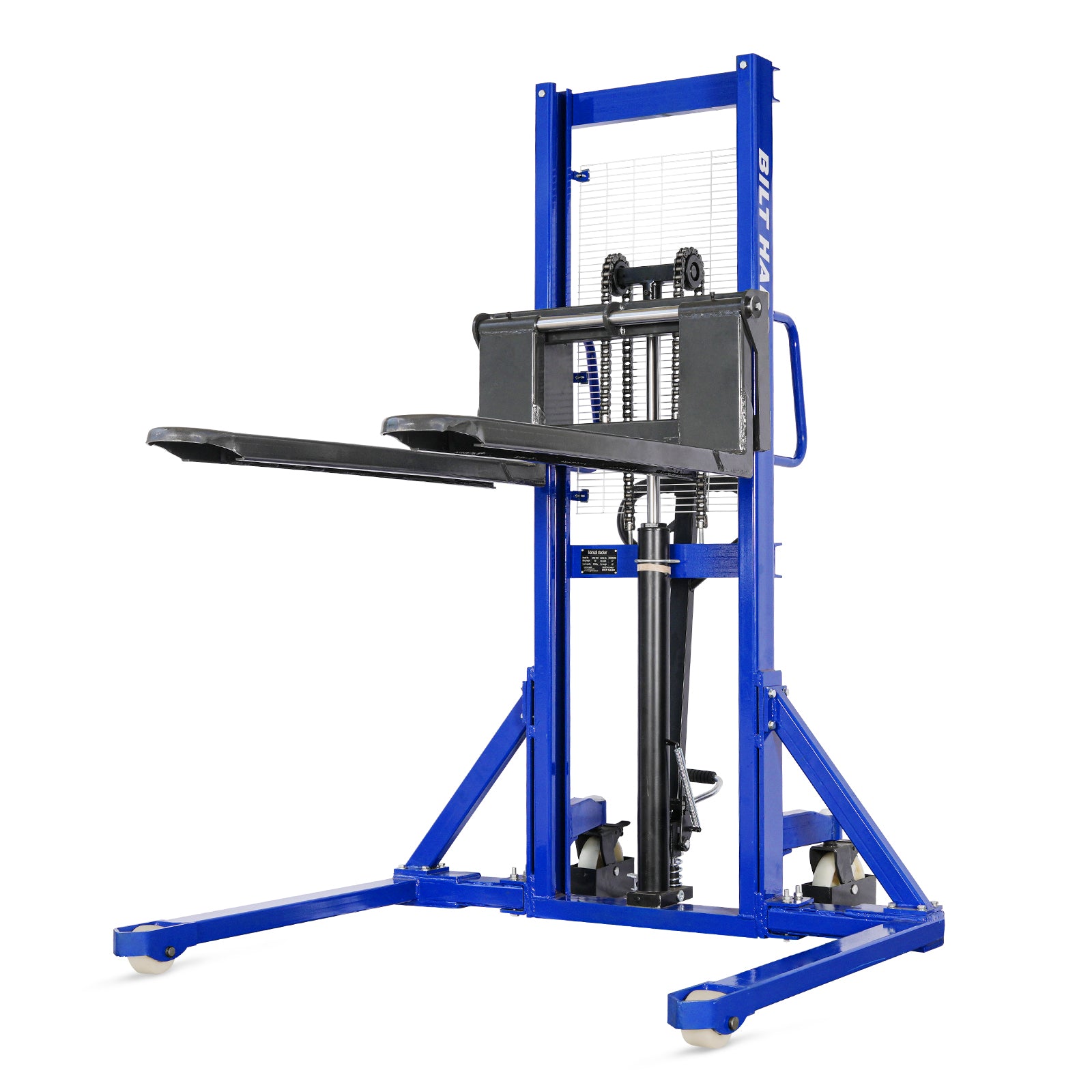

Dual-Chain Lift Support

The dual-chain mast guides the fork carriage through the lift range for controlled load positioning.

Compare Pallet Stackers

Compare lift height, capacity, and operating method.

Swipe to compare →

Feature BILT HARD manual hydraulic pallet stacker MHD-1801 Manual Pallet Stacker BILT HARD manual high-lift pallet jack MHE-1851 Manual High-Lift Pallet Jack BILT HARD semi-electric high-lift pallet jack MHF-1901 Semi-Electric High-Lift Pallet Jack
Load Capacity 2,200 lb 2,200 lb 3,300 lb
Fork Height 3–63 in. 3–31 in. 3.3–31.5 in.
Fork Length 45 in. 45 in. 45.3 in.
Lift System Manual Hydraulic Manual Hydraulic
Double Cylinder		 Semi-Electric Hydraulic

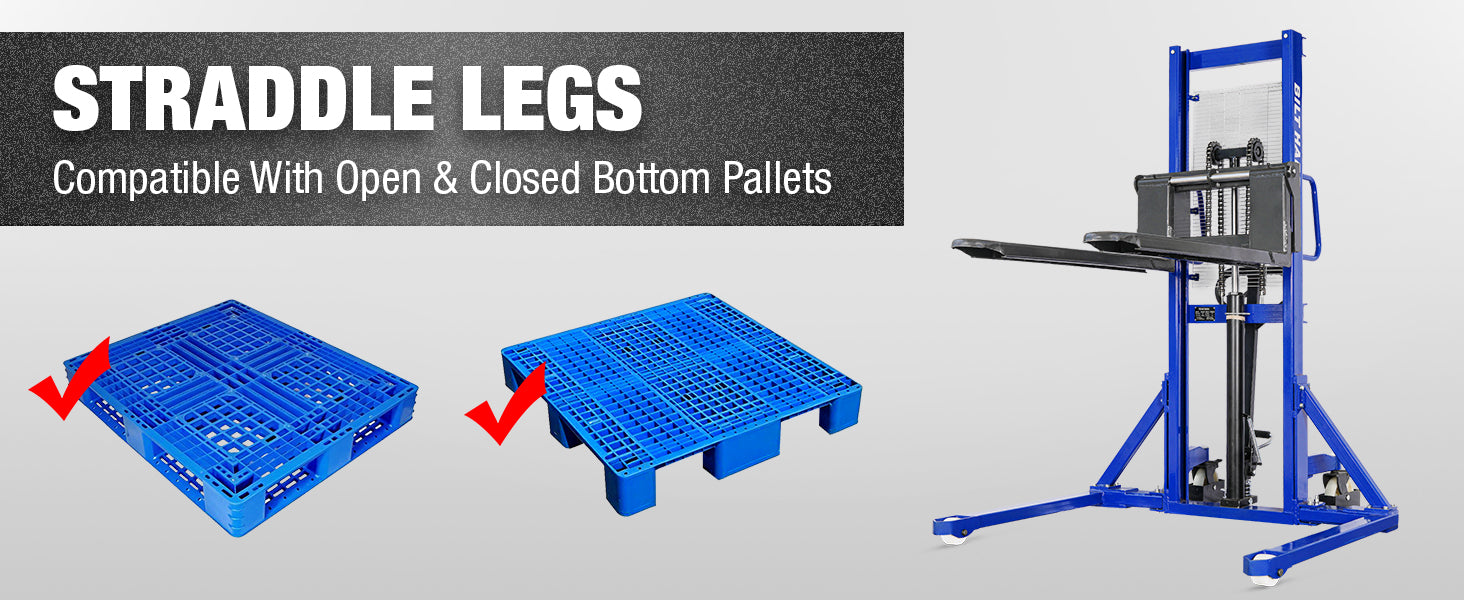

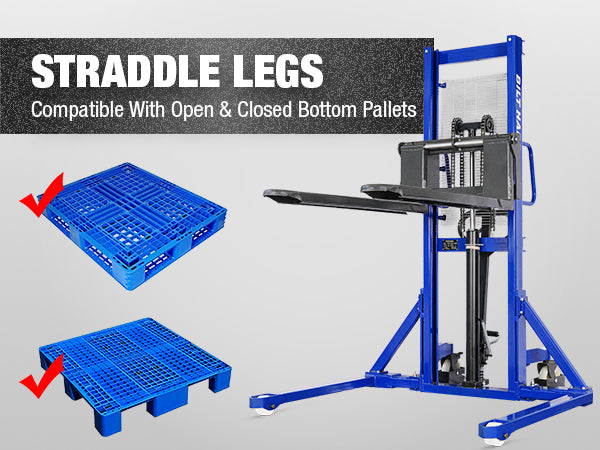

Base Design Straddle Legs Scissor Lift Scissor Lift
Power Unit Not Required Not Required 12V / 1.1 kW
Best For Higher Load Positioning Manual Work-Height Lifting Powered, Higher-Capacity Lifting
Shop View Product View Product View Product

FAQ

The manual stacker lifts up to 63 inches. The high-lift pallet jack offers manual lifting, while the semi-electric model provides powered lifting and a higher 3,300 lb capacity.

The manual models support up to 2,200 lb. The semi-electric model supports up to 3,300 lb.

Compatibility depends on pallet size, bottom design, and fork clearance. Check all dimensions before purchase.

The manual models require no power. The semi-electric model uses a 12V powered lift but is moved manually.

Lower the load before moving. Do not transport loads in a raised position.

Use only on flat, hard, and level ground. Do not operate on slopes or uneven surfaces.

Yes. Follow the included manual. The manual pallet stacker requires two adults for safe assembly.

Regularly inspect the wheels, forks, controls, and hydraulic system. Lubricate moving parts and lower the forks after use.
  • 5 stars: 3 (60%)
  • 4 stars: 2 (40%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jason Walker
Right for Occasional Use

A good fit for occasional shop use. Pumping and steering take some effort when loaded, but we expected that from a manual stacker.

D
Daniel Robinson
Saves a Second Handling Step

Gets the pallet to a useful height and saves us from unloading it by hand.

B
Brian Sullivan
Heavy, but Straightforward

This thing is heavier than it looks, but the controls are simple. Lift, neutral, and lower are easy to understand, and it feels steady with a centered load. Assembly took two of us, which I would definitely recommend rather than trying to manage the frame alone.

K
Kevin Davis
Works in Our Stock Room

We use it in the stock room to move pallets from floor level to a higher storage position. It turns well enough on our smooth concrete.

M
Mark Parker
Simple Lift, No Battery

No battery, no charger, and the lift works smoothly. Pretty much what I needed.
