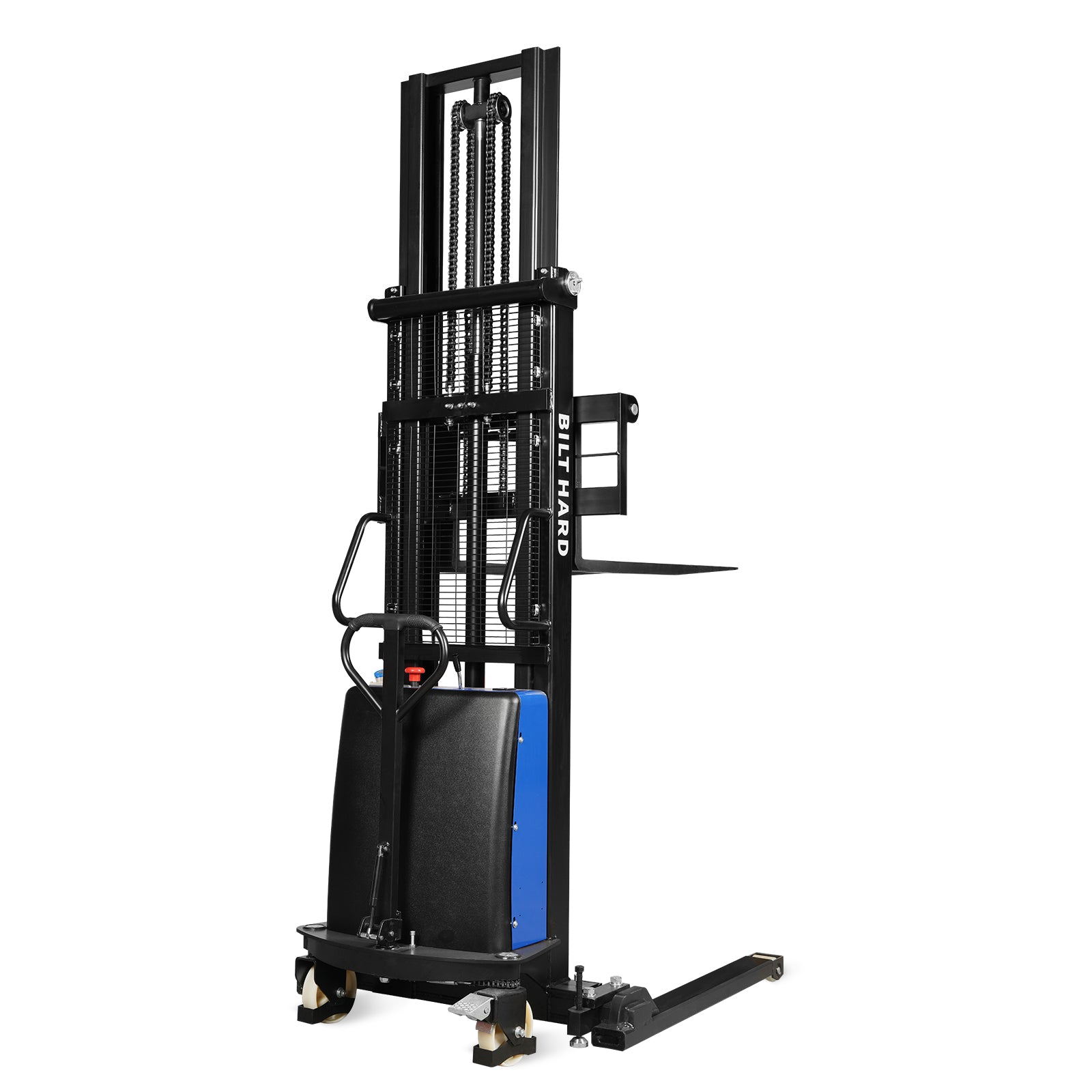

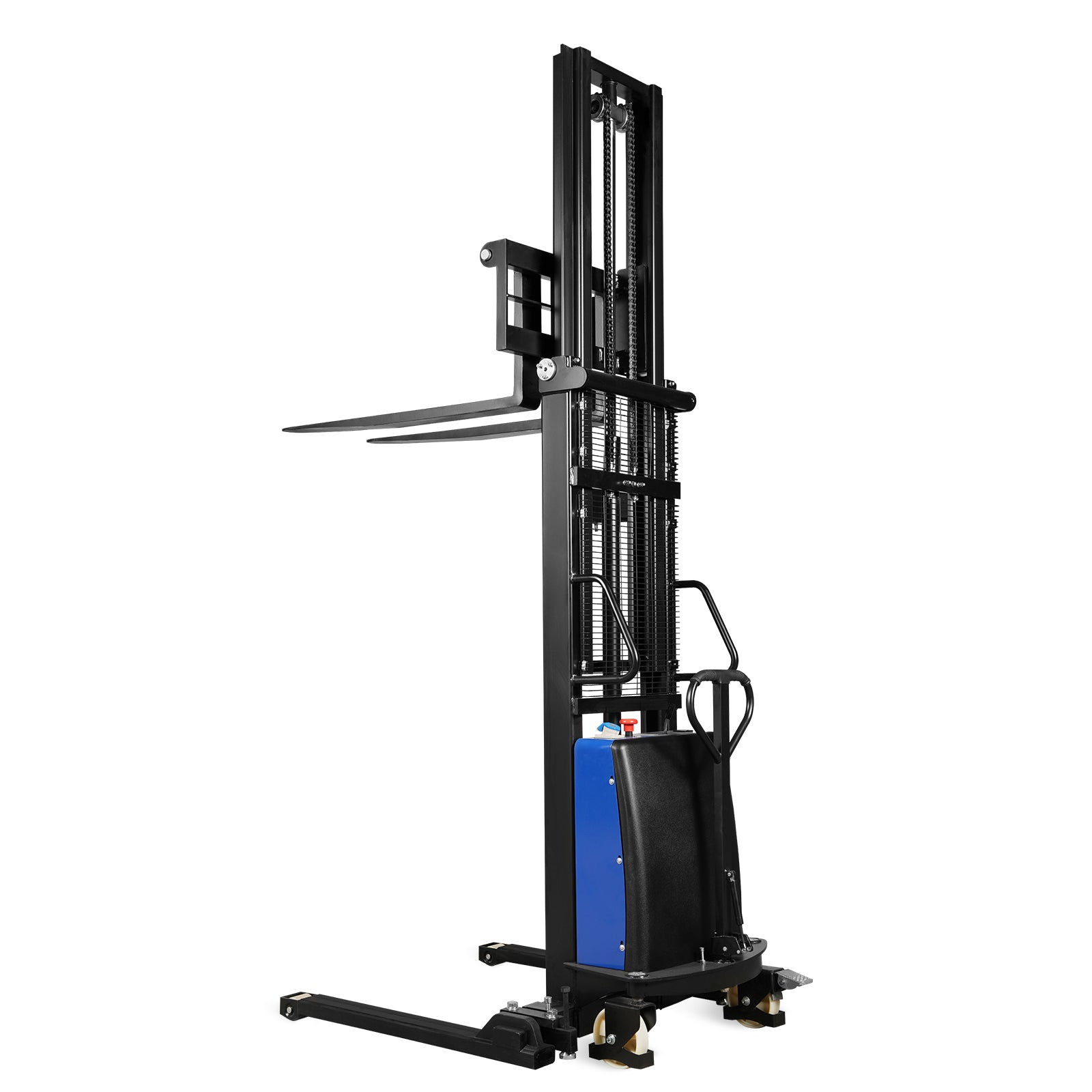

BILT HARD 3,300-Lb Semi-Electric Straddle Stacker, 118-Inch Max Lift, Adjustable Forks & Straddle Legs
$2,899.99
$3,999.99
/

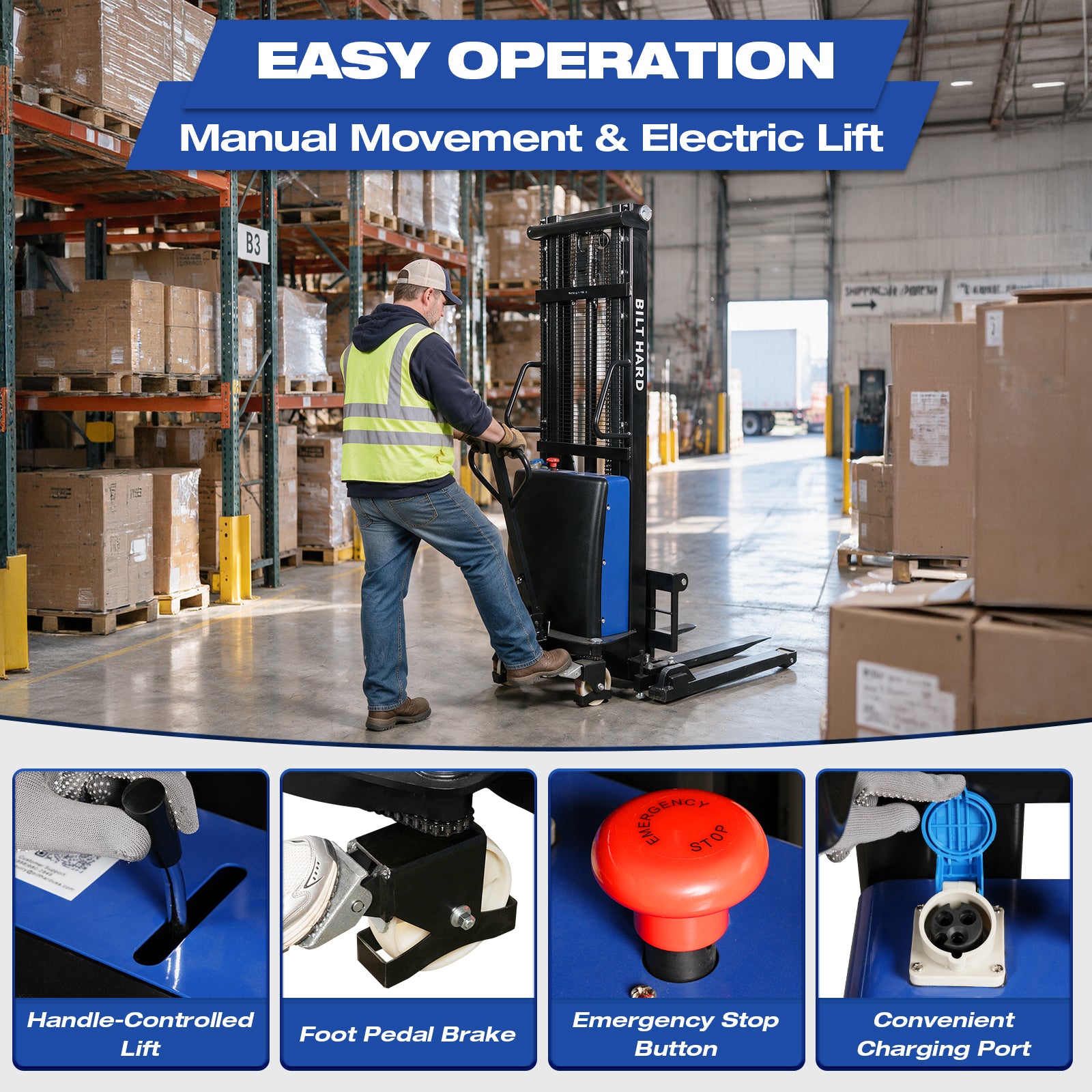

Electric lifting without the cost of a fully powered travel system.

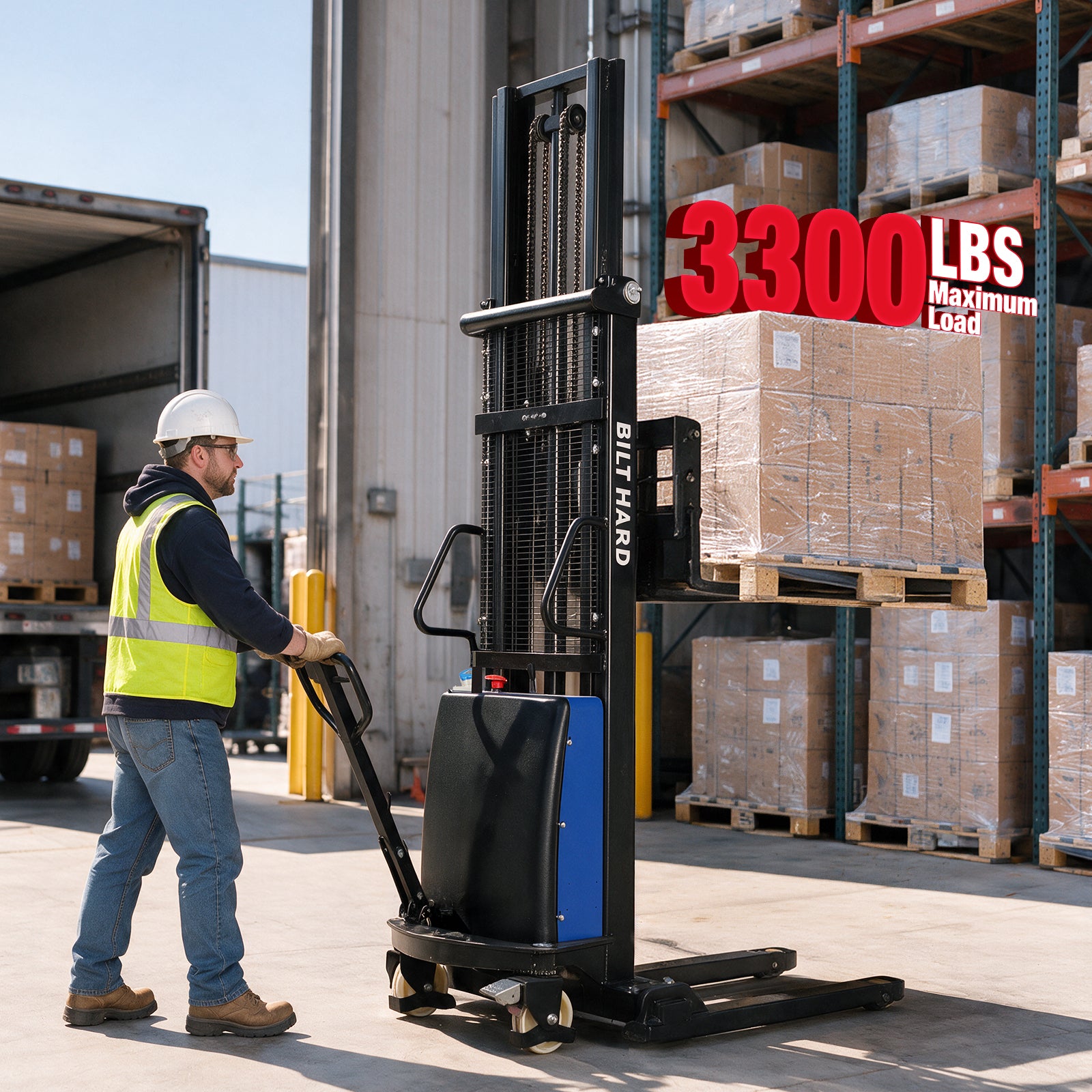

The BILT HARD 3,300-Lb Semi-Electric Straddle Stacker combines manual travel with powered hydraulic lifting, giving warehouses, workshops, stockrooms, and small businesses a practical upgrade from a fully manual stacker.
The electric lift system helps reduce manual lifting effort, while adjustable forks and straddle width provide flexibility for different pallet and load configurations. With a maximum lift height of 118 inches, it is designed for pallet positioning and stacking on solid, level indoor surfaces.

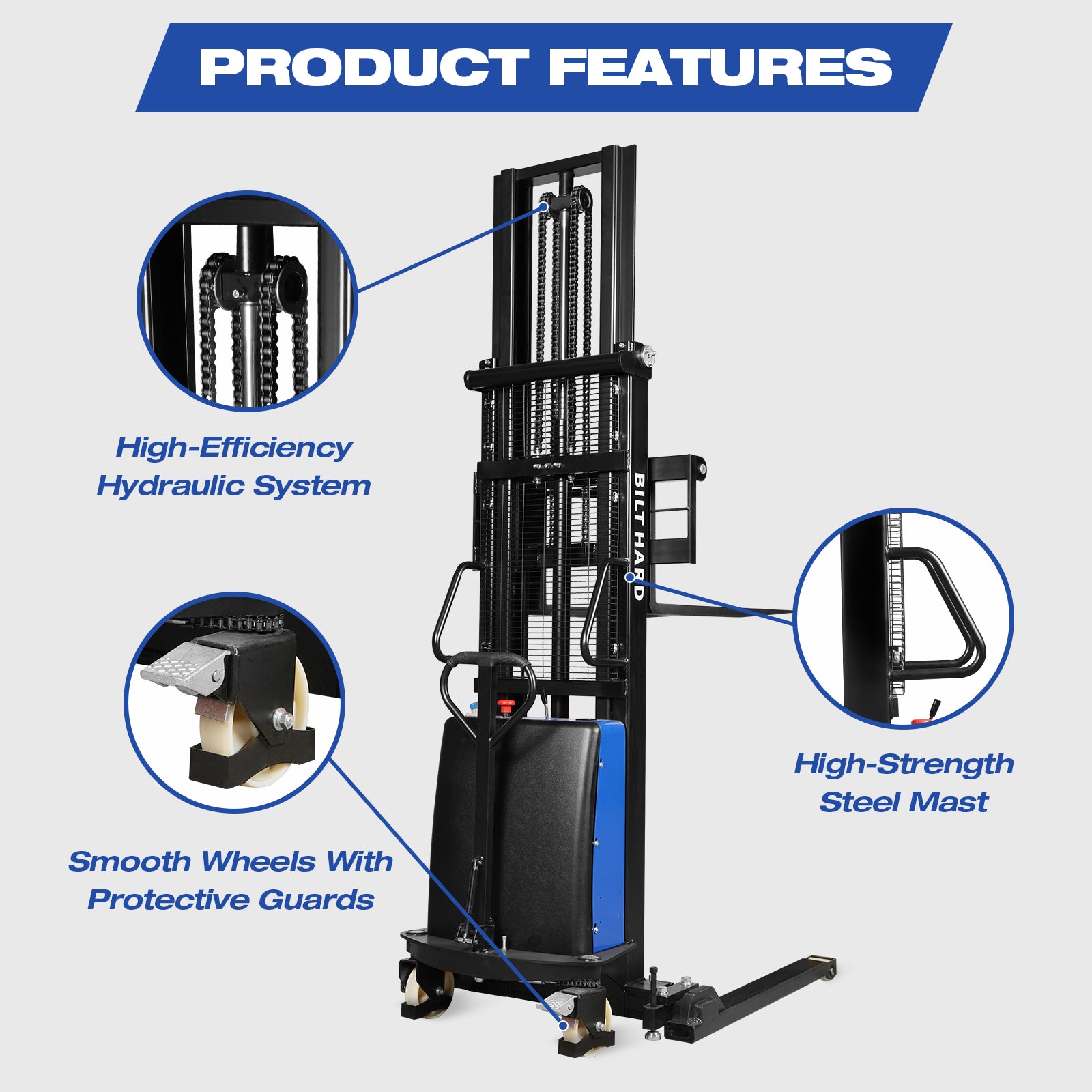

Key Features
- 3,300-lb maximum rated capacity
- Electric hydraulic lifting
- Manual walk-behind travel
- 118-in maximum lift height

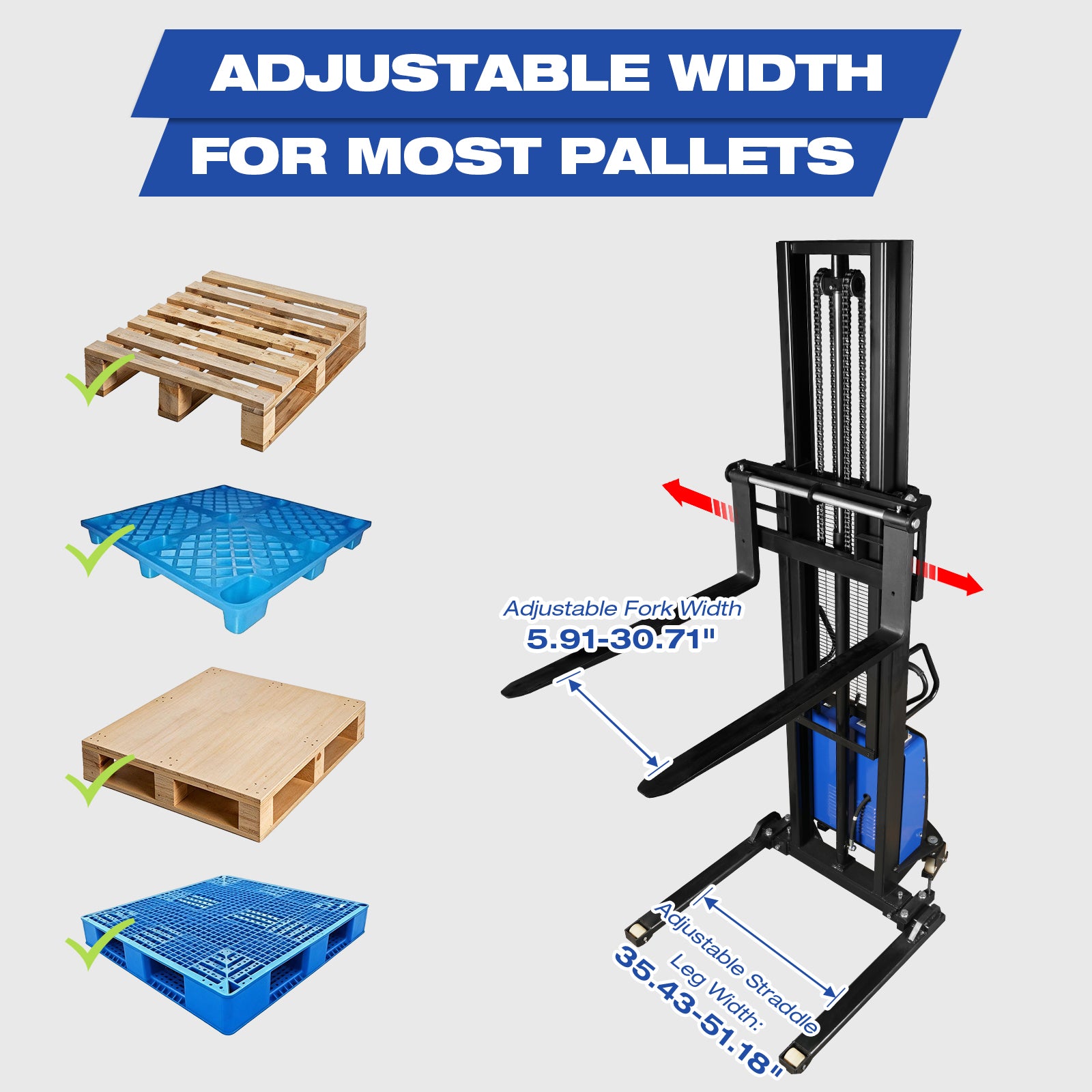

- Adjustable forks and straddle width
-
12V / 120Ah battery system
Technical Data
SKU: MHC-1751
Model
MHC-1751
Rated Load Capacity
3,300 lb
Load Center
23.62 in
Minimum Fork Height
2.56 in

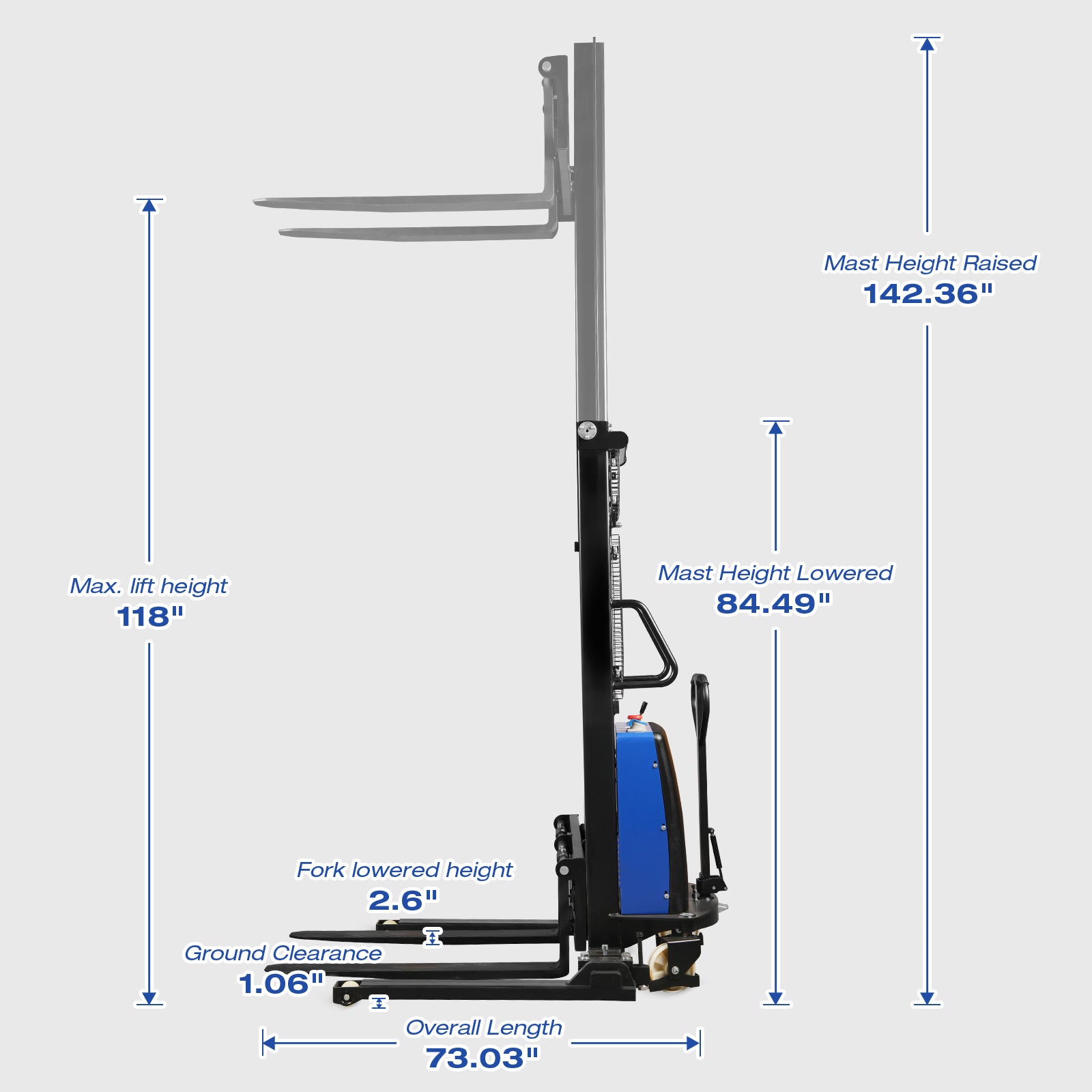

Maximum Fork Height
118.11 in
Lift Operation
Electric

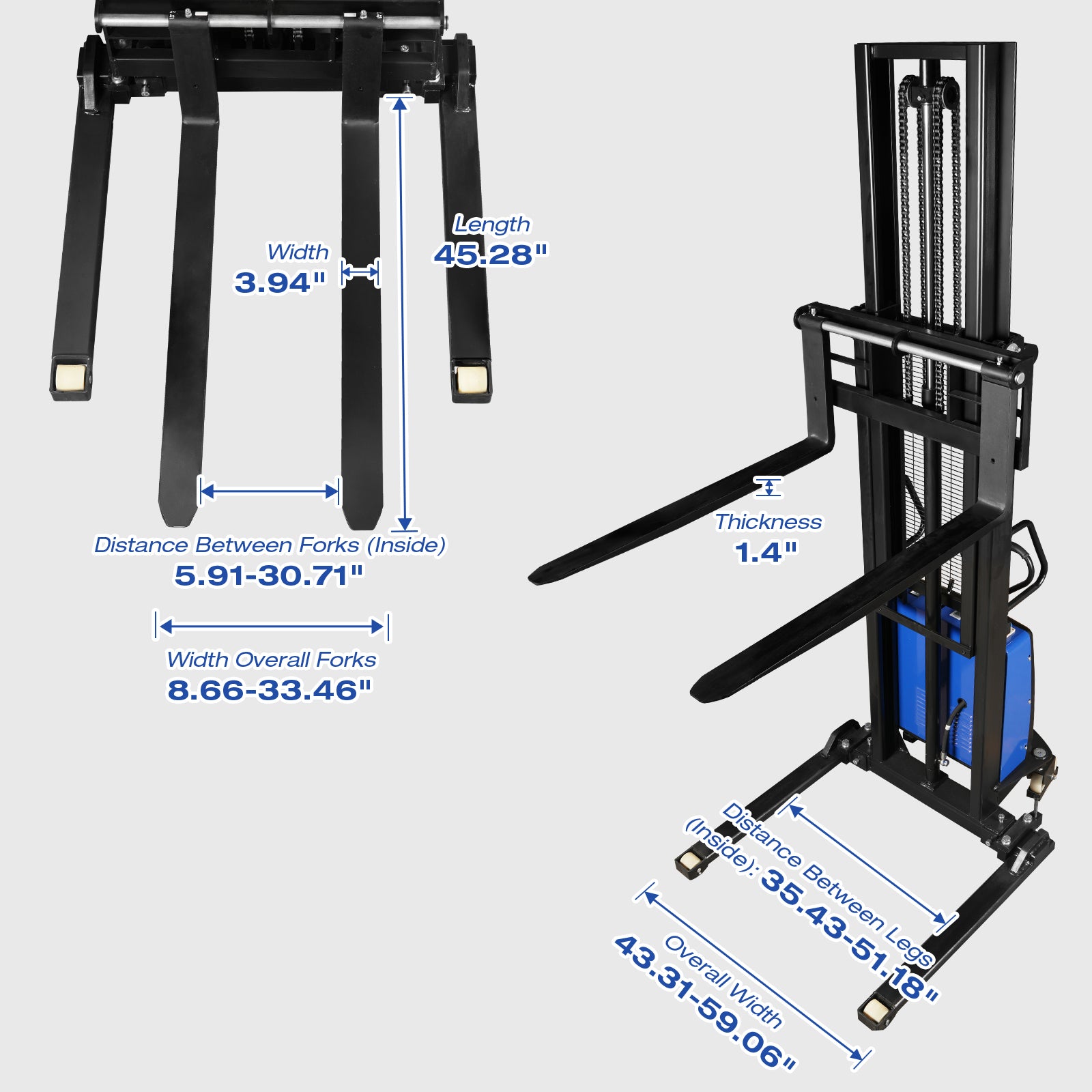

Adjustable Fork Width
8.66–33.46 in
Single Fork Width
3.94 in
Straddle Inner Width
35.43 / 51.18 in
Overall Length
73.03 in
Overall Width
43.31 / 59.06 in
Overall Height
84.49 in mast lowered / 142.36 in mast extended

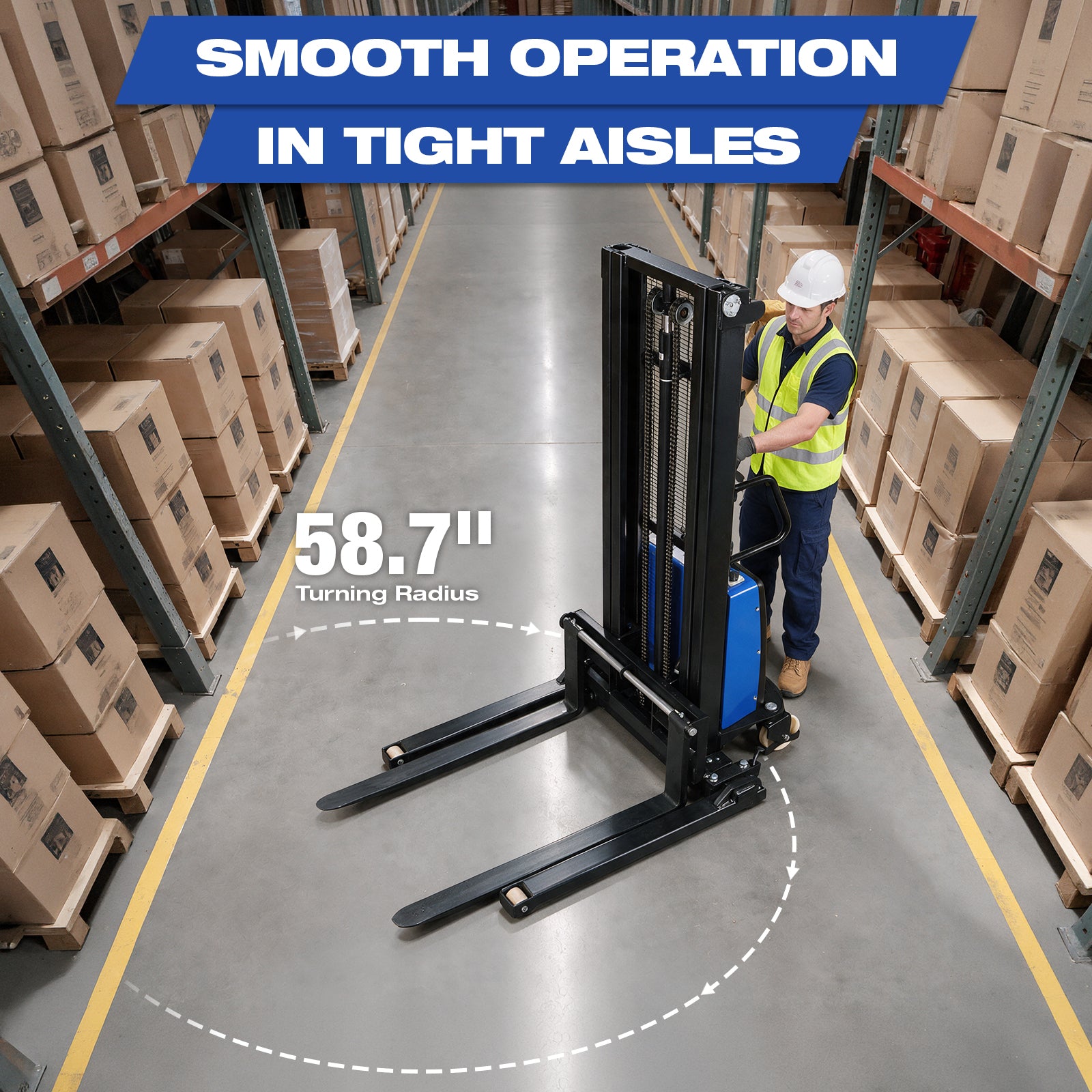

Turning Radius
58.74 in
Minimum Aisle Width
90.87–96.46 in for 800×1200 mm pallet; 92.68–96.46 in for 1000×1200 mm pallet
Load Wheels
Nylon
Steering Wheels
Nylon
Battery
12V / 120Ah
Charger
12V / 15A
Charging Time
12 Hours
Net Weight
1,102.31 lb incl. battery
Swipe to view more
Product Manual
Download the product manual for complete specifications, assembly instructions, operation guidance, and maintenance information.
COMPARE SIMILAR PRODUCTS
Swipe horizontally to compare
| Technical Data |
Current product
| ||
|---|---|---|---|
| Rated Load Capacity | 3,300 lb | 3,300 lb | 2,200 lb |
| Rated Load Capacity | 3,300 lb | 3,300 lb | 2,200 lb |
| Maximum Fork Height | 118.11 in | 118.11 in | 63 in |
| Fork Length | — | — | — |
| Adjustable Fork Width | 8.66–33.46 in | 8.3–33.5 in | 14.2–26.8 in (360–680 mm) |
| Overall Width | 43.31 / 59.06 in | 45.2–60.9 in | 57 in (1450 mm) |
| Turning Radius | 58.74 in | 53.9 in | — |
| Net Weight | 1,102.31 lb incl. battery | 1,451 lb incl. battery | 551.16 lb |
